Heavy Duty Galvanized Thimbles

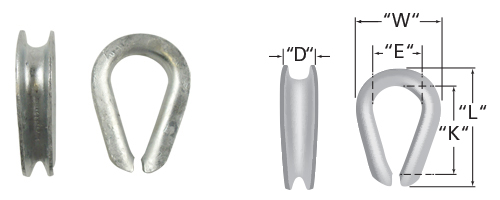

schematic

Heavy Duty Galvanized Thimbles
Cable
Dia.
Part No. "L"
LENGTH
"W"
WIDTH
"K"
EYE
LENGTH
"E"
EYE
WIDTH
"D"
WIDTH
1/4" RTHD08 2.19" 1.50" 1.63" .88" .42"
5/16" RTHD10 2.50" 1.81" 1.88" 1.05" .56"
3/8" RTHD12 2.88" 2.00" 2.10" 1.00" .74"
7/16" RTHD14 3.25" 2.25" 2.38" 1.15" .79"
1/2" RTHD16 3.60" 2.60" 2.60" 1.46" .87"
5/8" RTHD20 4.25" 3.10" 3.20" 1.75" 1.08"
3/4" RTHD24 5.06" 4.00" 3.75" 2.00" 1.29"
1" RTHD32 6.13" 4.72" 4.62" 2.37" 1.56"
1-1/4" RTHD40 7.10" 5.58" 4.80" 3.00" 2.00"
1-3/8" RTHD44 9.25" 6.63" 6.87" 3.38" 2.25"
1-1/2" RTHD48 9.25" 7.15" 6.37" 3.50" 2.59"
1-3/4" RTHD56 12.25" 8.18" 9.25" 4.31" 2.87"
Please click on part number to order.
