Regular Duty Zinc Plated Thimbles

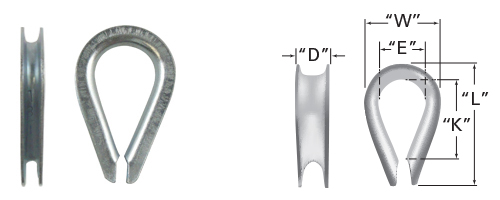

schematic

Regular Duty Zinc Plated Thimbles
Cable
Dia.
Part No. "L"
LENGTH
"W"
WIDTH
"K"
EYE
LENGTH
"E"
EYE
WIDTH
"D"
WIDTH
1/8" RTRD04 1.88" 1.15" 1.30" .69" .27"
3/16" RTRD06 1.88" 1.06" 1.30" .69" .36"
1/4" RTRD08 1.94" 1.06" 1.43" .69" .39"
5/16" RTRD10 2.13" 1.21" 1.52" .81" .45"
3/8" RTRD12 2.38" 1.43" 1.70" .94" .55"
1/2" RTRD16 2.70" 1.84" 1.85" 1.16" .68"
5/8" RTRD20 3.50" 2.36" 2.25" 1.35" .95"
3/4" RTRD24 3.75" 2.69" 2.60" 1.63" 1.13"
7/8" RTRD28 4.90" 3.10" 3.44" 1.87" 1.29"
1" RTRD32 5.65" 3.64" 4.20" 2.50" 1.39"
Please click on part number to order.
