Invisiware® Receiver (Phosphor Bronze)

  • Invisiware® Receiver
  • How It Works
Made in USA

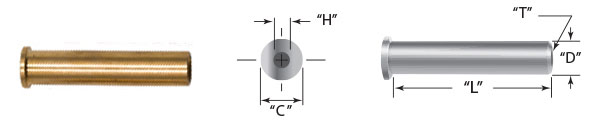

Invisiware® Receiver

Invisiware® Receiver (Phosphor Bronze)  316SS
Cable Dia. Use With
Stud No.
LENGTH =1.562"
LENGTH =1.812"
LENGTH =2.030"
LENGTH =2.301"
LENGTH =2.375"
LENGTH =2.530"
LENGTH =3.030
1/8" 20FS4 .437" 3/16" 5/16"-24 .537" 20F4012BZ 20F4022BZ 20F4032BZ 20F4042BZ 20F4072BZ 20F4082BZ 20F4052BZ 20F4062BZ
3/16" 20FS6 .437" 3/16" 5/16"-24 .537" 20F4012BZ 20F4022BZ 20F4032BZ 20F4042BZ 20F4072BZ 20F4082BZ 20F4052BZ 20F4062BZ
Please click part number to order.

How it works.
Slide the Invisiware® receiver into a pre-drilled hole in the end post. The inside of the receiver is female-threaded to accept the male-threaded swaging stud (below) that is attached to the cable. The head of the receiver is broached for an Allen wrench. To tension the cable, simply insert the Allen wrench and rotate the receiver around the male threads to draw the stud and cable further inside the receiver. When installed, only the head of the Invisiware® receiver is exposed on the outside of the post.
Use with metal or wood — on level runs or stairs
Invisiware® receivers are used with pipe and with round, square or rectangular metal tubing. Pipe ends are counterbored, so the full perimeter of the head rests on a flat surface in the pipe. The head rests on the outside wall of a flat-sided metal post. A plastic washer is included and acts as a scratch resistant barrier between the head of the receiver and the metal post.
For use in wood, the Invisiware® Receiver can rest against the outside of the post or the post can be counterbored with the receiver recessed in the post. For wood applications, also order Stainless Steel Washer, Part No. 11HW14
You do not have to drill your holes at an angle to use Invisiware® Receivers on stairs or severe pitches up to 35 degrees. Not applicable with 5/16" and 3/8" cable.
