Invisiware® Radius Ferrules

  • Invisiware® Radius Ferrule
  • How It Works
Made in USA

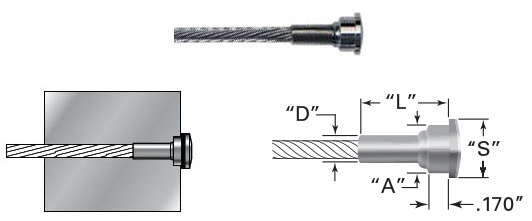

Invisiware® Radius Ferrule SWAGE  316SS
Cable Dia. Part No. "D"
DIAMETER AFTER SWAGED
"L"
LENGTH AFTER SWAGED
"S"
HEAD DIAMETER
"A"
SHOULDER DIAMETER
1/8" 20FRF4 .250" .750" .537" .437"
3/16" 20FRF6 .250" .750" .537" .437"
1/4" 20FRF8 .375" 1.000" .646" .531"
5/16" 20FRF10 .500" 1.000" .865" .687"
3/8" 20FRF12 .500" 1.000" .865" .687"
Please click part number to order.





How It Works
Often used in combination with the Invisiware® receiver, this fitting is also hidden inside the end post with only the head exposed on the outside of the post. When installed, it looks the same as the Invisiware® receiver except it costs much less.

Invisiware® radius ferrules are used with pipe and with round, square or rectangular metal tubing. Pipe ends are counterbored, so the full perimeter of the head rests on a flat surface in the pipe. The head rests on the outside wall of a flat-sided metal post. A plastic washer is included and acts as a scratch-resistant barrier between the head of the fitting and the metal post.

For use in wood, the Invisiware® radius ferrule can rest against the outside of the post or the post can be counterbored with the radius ferrule recessed in the post. For wood applications, also order a Stainless Steel Washer, Part No. 11HW14.
