Traditional Button Stud Tensioner

Made in USA
  • Traditional Button Stud Tensioning System
  • How It Works




stud tensioning system

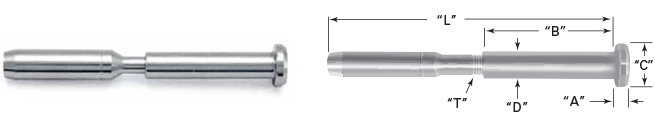

Traditional Button Stud Tensioner SWAGE  316SS
Cable Dia. Part No. "T"
THREAD
"B"
BODY
"L"
LENGTH
"D"
DIA.
"C"
CAP DIA.
"A"
CAP
THICKNESS
OPEN CLOSED
1/8" 10AST40800 1/4"-28 .563" 2.500" 2.500" .313" .500" .125"
1/8" 10AST40802 1/4"-28 1.500" 3.375" 2.625" .313" .500" .125"
5/32" 10AST50800 1/4"-28 .563" 2.875" 2.875" .313" .500" .125"
5/32" 10AST50802 1/4"-28 1.500" 3.750" 3.000" .313" .500" .125"
5/32" 10AST51000 5/16"-24 .563" 3.063" 2.813" .375" .563" .125"
5/32" 10AST51002 5/16"-24 1.500" 3.750" 3.000" .375" .563" .125"
3/16" 10AST60800 1/4"-28 .563" 2.813" 2.813" .313" .500" .125"
3/16" 10AST60802 1/4"-28 1.500" 3.813" 3.000" .313" .500" .125"
3/16" 10AST61000 5/16"-24 .563" 2.875" 2.875" .375" .563" .125"
3/16" 10AST61002 5/16"-24 1.500" 3.813" 3.000" .375" .563" .125"
1/4" 10AST81000 5/16"-24 .563" 3.500" 3.500" .375" .563" .125"
1/4" 10AST81002 5/16"-24 1.500" 4.375" 3.625" .375" .563" .125"
Please click part number to order.





stud tensioning system
How It Works
This simple and economical cable tensioning system provides for an extremely “clean” look concealing the threads for adjustment internally. The typical application is for short- to medium-length cable runs in wire sizes ranging from 1/8” to 1/4”. Cable tensioning is easily accomplished with the use of a 3/16” hex key wrench (Allen wrench). All hardware is made from high quality 316 grade stainless steel for superior corrosion resistance.
Additionally, the stud tensioners can be used in conjunction with other stud length combinations and systems to meet your design criteria.
