Traditional Toggle Jaw Turnbuckles

Made in USA
  • How It Works
  • Toggle Jaw Turnbuckle
  • Jaw Mounting Hardware




How it works.
Utilizing “Clevis” style ends for cable attachment, this system allows for connection to eye bolts, tee-stock, angle iron, flat bars, loops, etc. The toggling feature allows for angled takeoff without the use of additional hardware. Toggle ends come standard with screw and lock nut; however, also available with clevis pin, with cotter pin or ring pin upon request. For matching Non-Tensioning Fittings, use Series 10.

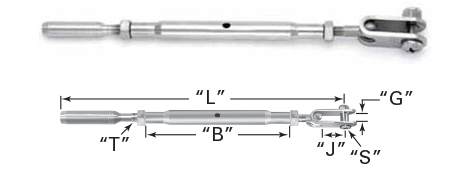

schematic
Traditional Toggle Jaw Turnbuckles SWAGE  316SS
Cable Dia. Part No. "T"
THREAD
"B"
BODY
"L"
LENGTH
"J"
JAW DEPTH
"S"
SCREW SIZE
"G"
JAW WIDTH
OPEN CLOSED
1/8" 10A40200 10-32 3.500" 8.500" 6.000" .563" #10 .250"
1/8" 10A40202 1/4"-28 4.250" 9.625" 7.625" .875" .250" .250"
5/32" 10A50202 1/4"-28 4.250" 10.125" 8.125" .875" .250" .250"
3/16" 10A60202 1/4"-28 4.250" 10.125" 8.125" .875" .250" .250"
3/16" 10A60204 5/16"-24 4.750" 11.000" 9.000" .875" .313" .313"
1/4" 10A80202 5/16"-24 4.750" 11.500" 9.500" .875" .313" .313"
1/4" 10A80204 3/8"-24 5.250" 12.250" 10.250" 1.063" .375" .375"
Please click part number to order
