Push-Lock® Tensioner with Threaded Bolt

  • Push-Lock® Tensioner with Threaded Bolt
  • How It Works
Made in USA

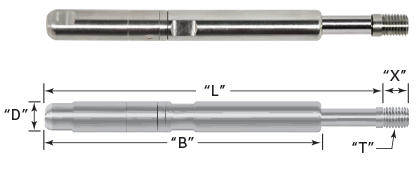

Push-Lock® Tensioner with Threaded Bolt GRIP  316SS
CABLE
DIA.
PART NO. "B"
BODY
LENGTH
"D"
BODY DIA.
"L"
LENGTH
"T"
THREAD SIZE
"X"
THREAD
LENGTH
OPEN CLOSED
1/8" 20APLTB4 3.820" .43" 5.120" 4.000" 5/16" - 24 .500"
3/16" 20APLTB6 3.820" .43" 5.120" 4.000" 5/16" - 24 .500"
Please click on part number to order.
Designed for use with 1x19 left hand lay strand only.
The Push-Lock® Tensioner with Threaded Bolt is an exposed, swageless, tensioning, face-of-the-post- mounted fitting that is suitable for use on level runs only, and is available for 1/8" & 3/16" diameter 1x19 stainless steel cable.

The Push-Lock® Tensioner with Threaded Bolt can be used with any fitting on the opposite end of the run. This fitting consists of two separate pieces: the threaded bolt and Push-Lock® tensioning body. The threaded bolt is installed into a pre-drilled and tapped hole in the end post. The cable attaches to the fitting via our Push-Lock® locking wedge system which requires no special tools. The body threads onto the other end of the bolt, connecting the two pieces. Tension is created by securing the post-side segment of the body onto the machine threads while preventing the cable-side segment of the body from turning.
