Quick-Connect® Surface Mount Swivel Turnbuckle
|

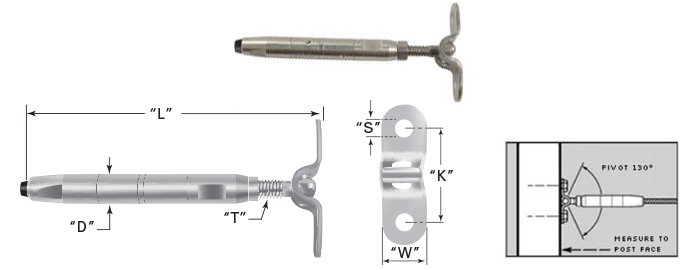

| Quick-Connect® Surface Mount Swivel Turnbuckle |
GRIP |
|
316SS |
| Cable Dia. |
Part No. |
"T"
THREAD |
"L"
LENGTH |
"K" †
HOLE SPACING |
"W"
WIDTH |
"S"
SCREW SIZE |
"D"
BODY DIA. |
| CLOSED |
OPEN |
| 1/8" |
47F4-9913 |
1/4"-20 |
3.875" |
4.500" |
1.313" |
.625" |
.250" |
.437" |
| 3/16" |
47F6-9813 |
5/16"-18 |
4.430" |
5.180" |
1.510" |
.755" |
.318" |
.540" |
| Please click on part number to order. |
| Quick-Connect® SS fittings pair with 1x19 construction cable only. |
| † since flanges are formed pieces, allow a tolerance of ± 1/16" on flange hole span dimension ("K") |
Attaches to the face of the post using lag screws, bolts, or button head allen screws (sold separately). Tension adjusted by spinning the special swiveling turnbuckle body. 130° pivoting allows for easy angled stair terminations.
Typically paired with Quick-Connect® Fixed Surface Mount or another Quick-Connect® Surface Mount Swivel Turnbuckle.
|
|
|
|
