Original Quick-Connect® Fitting

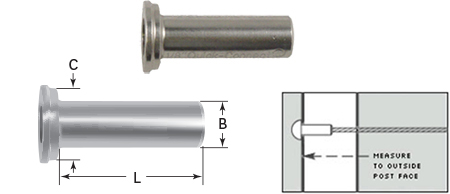

schematic

Original Quick-Connect® Stainless Steel Fitting GRIP  316SS
CABLE
DIA.
PART NO. B C L PIN
DRILL
1/8" 47F4-3146 .375" .625" 1.125" 3/8"
3/16" 47F6-3147 .531" .750" 1.625" 9/16"
1/4" 47F8-3148 .531" .750" 1.625" 9/16"
Please click on part number to order.
Quick-Connect® SS fittings pair with 1x19 construction cable only.
Pin Drill is the recommended drill hole size for attaching fittings to end posts. Drill hole diameters for the intermediate posts may be different than the fitting attachment posts. See Recommended Drill Hole Charts.

Attaches to the cable by hand without special tools. One-way jaws allow cable to pass through fitting in one direction and lock automatically when cable is released.

On wood posts use flat washer for added bearing surface. Use beveled washer for angled terminations. Exposed end is covered with colored or stainless steel end caps. All accessories sold separately.

Can be paired with any Tension Adjustment Fitting.
