Isolation Bushings

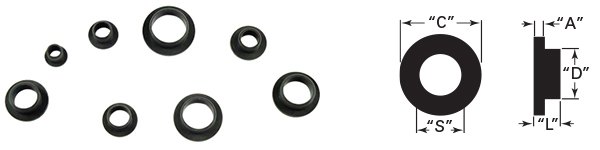

schematic

Isolation Bushings
Part No. "A"
WASHER
"L"
LENGTH
"C"
DIA.
"D"
DIA.
"S"
DIA.
47HG-1100 .044" .244" .680" .475" .380"
47HG-1101 .028" .245" .369" .254" .190"
47HG-1102 .026" .241" .493" .317" .253"
47HG-1103 .036" .232" .862" .635" .556"
47HG-1104 .036" .232" .585" .360" .282"
47HG-1105 .044" .243" .741" .536" .443"
47HG-1115 .028" .245" .555" .380" .315"
47HG-1118 .036" .230" .782" .556" .480"
Please click on part number to order.

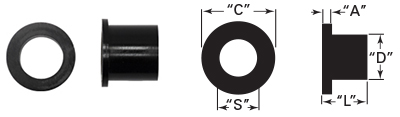

schematic
Isolation Bushings - Invisiware®
Part No. "A"
WASHER
"L"
LENGTH
"C"
DIA.
"D"
DIA.
"S"
DIA.
20HGRB04 .060" .560" .690" .560" .438"
Please click on part number to order.

• For eliminating direct contact of dissimilar metals to minimize electrolysis when attaching cables and fittings to    metal posts in areas with salt air or similar harsh elements
• Highly resistant to abrasion and UV degradation
• Wide operating temperature range, -40°F to +266°F
• Must use silicone sealant (not included) to secure bushings in posts
