Threaded Tab

  • Threaded Tab
  • How It Works

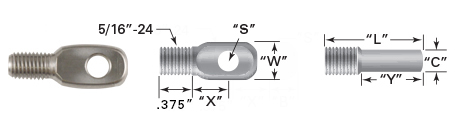

Threaded Tab 316SS
Cable
Dia.
Part No. "L"
OVERALL
LENGTH
"X"
SHANK END
TO C/L
"C"
TAB
THICKNESS
"Y"
TAB
LENGTH
"B"
C/L TO
END
"S"
HOLE
DIAMETER
1/8" 20HTT4 1.250" .500" .233"/.299" .813" .313" .265"
3/16" 20HTT4 1.250" .500" .233"/.299" .813" .313" .265"
1/4" 20HTT8 1.625" .875" .295"/.285" 1.250" .375" .390"
5/16" 20HTT8 1.625" .875" .295"/.285" 1.250" .375" .390"
3/8" 20HTT8 1.625" .875" .295"/.285" 1.250" .375" .390"
Please click part number to order.

How it works.
A convenient, easy-to-install means for attaching an Adjust-A-Jaw® or Adjust-A-Body® tensioner, CAI Fixed Jaw, Toggle Jaw system, or Push-Lock™ fitting with threaded eye to a metal post. The threaded tab screws into a drilled and tapped hole on the inside wall of the end post. You save the expense of welding tab or tabs onto your end post. Recommended only when you are using a minimum schedule 80 pipe end post or a square or rectangular steel end post with a minimum .250" wall.
