Nicopress Copper Oval Sleeves

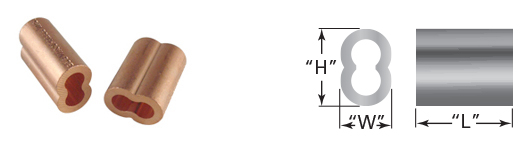

Copper Sleeve Schmatic
Nicopress Copper Oval Sleeves
Part No. Cable Dia. "L"
LENGTH
"W"
WIDTH
"H"
HEIGHT
WALL
THICKNESS
11N17-1-B 1/32" .262" .088" .129" .021"
11N18-11-B4 3/64" .385" 135" .202" .032"
11N18-1-C 1/16" .358" .168" .252" .038"
11N18-2-G 3/32" .392" .227" .372" .050"
11N18-3-M 1/8" .573" .324" .492" .081"
11N18-4-P 5/32" .645" .360" .590" .080"
11N18-6-X 3/16" .955" .448" .674" .109"
11N18-8-F2 7/32" .875" .466" .710" .105"
11N18-10-F6 1/4" 1.014" .514" .811" .114"
11N18-13-G9 5/16" 1.085" .668" 1.022" .150"
11N18-23-H5 3/8" 1.260" .728" 1.128" .114"
11N18-24-J8 7/16" 1.750" .855" 1.312" .167"
11N18-25-K8 1/2" 1.887" .964" 1.473" .187"
Please click on part number to order.
