Product Detail


Manufacturer GTI

In-Line Stressing-End Anchorage Group - 0.5" - (201306)


Price: $1,048.79

Quantity:


Product discounts do not apply to this item

Untitled Document
  • In-Line Stressing-End Anchorage Group
  • Parts Diagram
  • Features

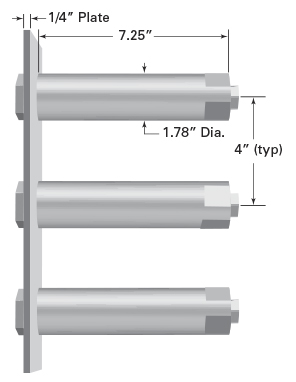

Schematic

Stressing-end device for end anchorages contained within concrete columns/walls or attached to a steel memner on the exterior of the column/wall that does not allow normal stressing.

  • Coupler that allows tensioning of the barrier cables when ends are inaccessible
  • Coupler that removes the slack from the barrier cables when ends are inaccessible
  • The in-line assembly is complete with allowance for 11 barrier cables
  • A special plate with holes machined at 4" centers allows for code specified alignment of barrier cables

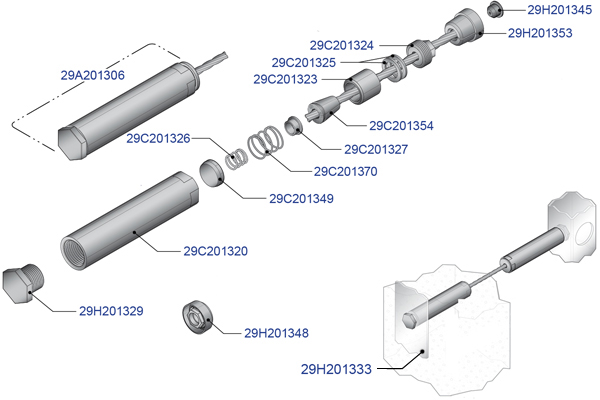

Parts Diagram
0.5" Barrier Cable System - In-Line Stressing-End Anchorage Group
29A201306  BCS-05, SE System w/Plate, Angled, Assembly, 0.5", including
  29A201308  BCS-05, SE Coupler, Tensioning, Angled, Assembly
  29C201320  BCS-05, Body, SE Coupler, Plated
29C201323  BCS-05, Smooth Barrel Anchor, Coupler, Plated
29C201324  BCS-05, Stressing Nut, Coupler, Plated
29C201325  BCS-05, Washer, Coupler
29C201326  BCS-05, Spring, Coupler
29C201327  BCS-05, Spring Spacer, Coupler
29C201329  BCS-05, SE Coupler Fastener Nut, Plated
29C201349  BCS-05, Spring Stop, Coupler
29C201353  BCS-05, Plug, SE Coupler
29C201354  BCS-05, 3PC Wedge, Plated
29C201370  BCS-05, Spring, Coupler Barrel
29H201333  BCS-05, Plate, SE Coupler, Plated
29H201345  BCS-05, Pipe, Locator Plug
29H201348  BCS-05, Pocket Former. SE Coupler

0.5" Barrier Cable System

Cable Art Inc. offers the most advanced Barrier Cable System available. It is the first and only system that enables the use of encapsulations and shop prefabrication giving our customers the freedom to work in the most effective manner possible.

this Barrier Cable System provides standard or encapsulated coated barrel anchors, a barrier cable system that can be contained within a column or exposed on the column's exterior, and fully enclosed intermediate tension coupler when barriers strand ends are inaccessible.

The Barrier Cable System can be used through a column or external to the column and consists of the following anchorages allowing a complete barrier cable system with a variety of optional anchorage configurations.

• BCS Barrel Anchors and BCS Wedges that can be exposed or encapsulated and are zinc-coated. Encapsulation caps com in concrete gray color - custom cap colors are available by special order.
• BCS Barrier Cable System for end anchorages at concrete columns, either contained within the column or exposed on column's exterior. The system used BCS Barrel Anchors with spring-loaded wedges for interior of column; a special plate assembly can accommodate up to a 6-degree offset for ramps and special details. A special plate with holes machined at 4" centers allows for code specified alignment for barrier stands.
• An intermediate BCS Tensioning Coupler allows tensioning of the barrier strands when the ends are inaccessible. A floating device allows for tensioning of the strands and a special cap stops moisture from entering the system.
• The BCS Stressing-End Coupler employs similar concept to the tensioning coupler but is contained within the column. It also comes with a special plate with holes machined at 4" centers.

Diagram
Barrier Cable System testing confirms that all Anchorages meets ACI and PTI requirements for post-tensioning anchors. The system is easy to use and placer friendly.
