Drop Forged Style, Precision Cast Stainless Steel Wire Rope Clips

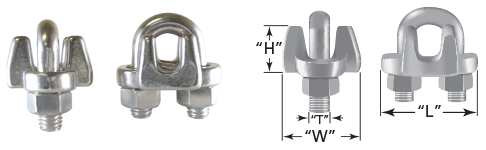

Drop Forged Style SS Wire Rope Clips

Drop Forged Style, Precision Cast S/S Wire Rope Clips  316SS
Cable
Dia.
Part No. Min.
Clips
Required
Torque
(ft/lbs)
**
Amount of
Wire to
Turn Back
"L"
LENGTH
"W"
WIDTH
"H"
HEIGHT
"T"
THREAD
1/8" 33HWRC304 2 5 3-1/4" .92" .74" .40" .23"
5/32" 33HWRC305 2 5 3-3/4" 1.04" .88" .42" .23"
3/16" 33HWRC306 2 5 3-3/4" 1.13" .90" .48" .24"
1/4" 33HWRC308 2 8 4-3/4" 1.44" 1.10" .65" .30"
5/16" 33HWRC310 2 15 5-1/4" 1.66" 1.21" .70" .37"
3/8" 33HWRC312 2 30 6-1/2" 1.90" 1.52" .92" .43"
1/2" 33HWRC316 3 45 11-1/2" 2.22" 1.81" 1.13" .49"
5/8" 33HWRC320 3 95 12" 2.48" 1.92" 1.36" .55"
3/4" 33HWRC324 4 130 18" 2.97" 2.10" 1.43" .61"
Please click on part number to order.
** Based on clean, un-lubricated threads. Table above shows minimum torque required to reach maximum holding power of wire rope clip.
WARNING: Precision Cast Stainless Steel Wire Rope Clips are not to be used for overhead lifitng.
