Stainless Steel Screw Pin Anchor Shackles

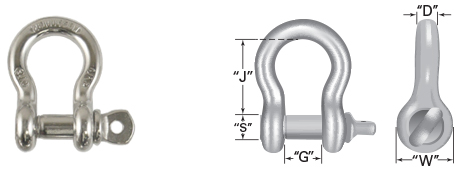

Schematic

Stainless Steel Screw Pin Anchor Shackles  316SS
Nominal
Size
Part No. WLL
(lbs.)
*
"D"
STOCK SIZE
"G"
OPENING
"J"
EYE DEPTH
"W"
WIDTH
"S"
PIN DIA.
3/16" 33HSSPA06 650 .18" .39" .87" .53" .23"
1/4" 33HSSPA08 880 .24" .46" 1.06" .64" .31"
5/16" 33HSSPA10 1,300 .30" .52" 1.24" .77" .39"
3/8" 33HSSPA12 1,500 .37" .62" 1.43" .90" .46"
7/16" 33HSSPA14 2,000 .43" .75" 1.62" 1.10" .48"
1/2" 33HSSPA16 3,000 .47" .76" 1.87" 1.21" .62"
5/8" 33HSSPA20 4,000 .60" 1.09" 2.37" 1.52" .78"
3/4" 33HSSPA24 6,000 .71" 1.25" 2.83" 1.81" .87"
7/8" 33HSSPA28 8,000 .87" 1.48" 3.40" 2.10" .98"
1" 33HSSPA32 10,000 .99" 1.63" 3.70" 2.31" 1.12"
Please click on part number to order.
* Ultimate load is 4 times the working load limit.
