Precision Cast Stainless Steel Wire Rope Clips
 |
| Stainless Steel Wire Rope Clips |
316SS |
| Cable Dia. |
Part No. |
Minimum No. of Clips Required |
Torque
(ft/lbs.) ** |
Amount of Wire to
Turn Back
(in.) |

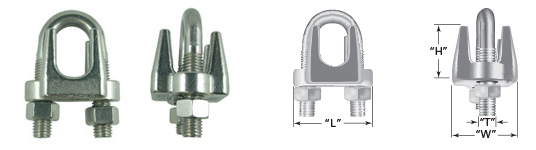

"L"
LENGTH |
"W"
WIDTH
|
"H"
HEIGHT |
"T" THREAD |
| 1/16" - 3/32" |
30HWRC302 |
3 |
2 |
4" |
.54" |
.49" |
.39" |
.10" |
| 1/8" |
30HWRC304 |
3 |
3 |
4-3/4" |
.67" |
.58" |
.39" |
.13" |
| 5/32" |
30HWRC305 |
3 |
4.5 |
5-1/2" |
.73" |
.66" |
.47" |
.14" |
| 3/16" |
30HWRC306 |
3 |
4.5 |
5-1/2" |
.94" |
.74" |
.50" |
.17" |
| 1/4" |
30HWRC308 |
3 |
15 |
7" |
1.04" |
.79" |
.62" |
.20" |
| 5/16" |
30HWRC310 |
3 |
15 |
7-3/4" |
1.33" |
1.05" |
.78" |
.27" |
| 3/8" |
30HWRC312 |
3 |
30 |
9-1/2" |
1.64" |
1.26" |
.91" |
.35" |
| 1/2" |
30HWRC316 |
4 |
45 |
15-1/4" |
1.95" |
1.42" |
1.06" |
.41" |
| 9/16" |
30HWRC318 |
4 |
50 |
16" |
- |
- |
- |
- |
| 5/8" |
30HWRC320 |
4 |
75 |
16" |
2.31" |
1.78" |
1.36" |
.49" |
| 3/4" |
30HWRC324 |
5 |
75 |
22-1/4" |
2.37" |
2.01" |
1.49" |
.49" |
| 7/8" |
30HWRC328 |
5 |
130 |
23-1/2" |
2.81" |
2.37" |
1.79" |
.56" |
| 1" |
30HWRC332 |
6 |
130 |
31" |
3.00" |
2.42" |
2.07" |
.56" |
| 1 1/4" |
30HWRC340 |
8 |
280 |
48" |
- |
- |
- |
- |
| Please click part number to order. |
| ** Based on Clean, un-lubricated threads. Table above shows minimum torque required to reach maximum holding power of wire rope clip. |
| WARNING: Stainless Steel wire rope clips are not to be used for overhead lifitng. |
|
|
|
|
