Galvanized Lag Eye Bolts

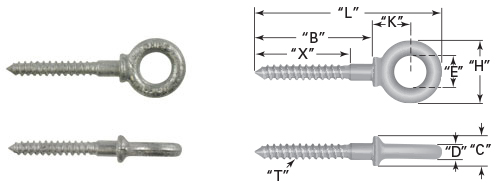

schematic
Galvanized Lag Eye Bolts
Shank Dia.
and Length
(in.)
Part No. "T"
THREAD
"X"
THREAD
LENGTH
"B"
BODY
LENGTH
"K"
SHOULDER
TO C/L
"L"
OVERALL
LENGTH
"E"
EYE
DIA.
"H"
HEIGHT
"D"
MATERIAL
DIA.
"C"
SHOULDER
WIDTH
1/4" x 2" REBLS08G 1/4" 1.50" 2.00" .70" 2.94" .50" .88" .19" .47"
5/16" x 2-1/4" REBLS10G 5/16" 1.69" 2.25" .75" 3.50" .63" 1.13" .25" .56"
3/8" x 2-1/2" REBLS12G 3/8" 1.88" 2.50" .87" 3.97" .75" 1.38" .31" .66"
1/2" x 3-1/2" REBLS16G 1/2" 2.44" 3.25" 1.12" 5.12" 1.00" 1.75" .38" .91"
5/8" x 4" REBLS20G 5/8" 3.00" 4.00" 1.37" 6.44" 1.25" 2.25" .50" 1.12"
3/4" x 4-1/2" REBLS24G 3/4" 3.20" 4.50" 1.75" 7.50" 1.50" 2.75" .62" 1.35"
Please click on part number to order.
