Shoulder Eye Bolts

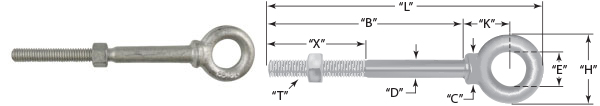

schematic

Shoulder Eye Bolts
Shank Dia.
& Length
(in.)
Part No. WLL
(lbs.) *
"T"
THREAD
"E"
EYE
DIA.
"H"
HEIGHT
"D"
MATERIAL
DIA.
"X"
THREAD
"B"
SHANK
LENGTH
"L"
OVERALL
LENGTH
"K"
SHOULDER
TO C/L
"C"
SHOULDER
WIDTH
5/16" x 4-1/4" REBS10G 1,200 .31 .62 1.12 .25 2.50 4.25 5.50 .69 .56
3/8" x 4-1/2" REBS12G 1,550 .38 .75 1.38 .31 2.50 4.50 5.97 .78 .66
1/2" x 6" REBS16G 2,600 .50 1.00 1.75 .38 3.00 6.00 7.88 1.00 .91
Please click on part number to order.
* Ultimate Load is 5 times the Working Load Limit. Working Load Limit shown is for in-line pull. Maximum Proof Load is 2 times the Working Load Limit.
