Industrial Turnbuckle - Jaw & Eye

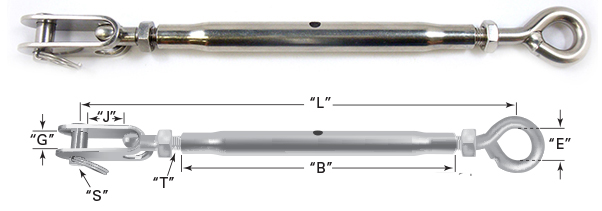

Jaw & Eye Schematic

Industrial Jaw & Eye Turnbuckle  316SS
Part No. Approx.
Breaking
Strength
(lbs.)
WLL
(lbs.)
"B"
THREAD
"L"
LENGTH
"D"
BODY LENGTH
"C"
EYE
DIA.
"G"
JAW OPENING
"S"
PIN
DIA.
"J"
JAW
DEPTH
OPEN CLOSED
15ATBEJ04 1,000 400 10-32 9.000" 6.500" 3.500" .316" .188" .188" 3/4"
15ATBEJ05 2,500 1,000 1/4"-28 10.500" 7.500" 4.500" .375" .250" .250" 3/4"
15ATBEJ06 4,000 1,600 5/16"-24 11.750" 9.000" 5.125" .500" .312" .312" 1"
15ATBEJ08 7,000 2,800 3/8"-24 13.500" 9.750" 5.625" .625" .375" .375" 1-1/8"
15ATBEJ10 10,500 4,200 1/2v-20 15.750" 11.000" 7.000" .750" .500" .500" 1-1/16"
15ATBEJ12 14,800 5,900 5/8"-18 18.500" 13.500" 8.625" .875" .625" .625" 1-3/8"
Please click on part number to order.
