Malleable Wire Rope Clips Zinc Plated

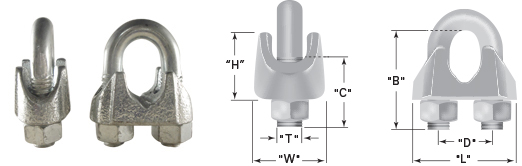

schematics

Malleable Wire Rope Clips
Cable Dia. Part No. Min.
Clips
Required
Torque in
(ft/lbs)
**
Amount of
Wire to
Turn Back
"L"
LENGTH
"W"
WIDTH
"H"
HEIGHT
"T"
THREAD
"B" "C"
THREAD
LENGTH
"D"
1/16" RWRCM02 3 2 4" .69" .40" .38" .15" .65" .45" .38"
1/8" RWRCM04 3 3 4-3/4" .94" .52" .50" .18" .81" .50" .50"
3/16" RWRCM06 3 4.5 5-1/2" 1.06" .60" .56" .25" .94" .56" .56"
1/4" RWRCM08 3 15 7" 1.31" .72" .69" .31" 1.19" .75" .75"
5/16" RWRCM10 3 15 7-3/4" 1.44" .74" .75" .31" 1.31" .84" .75"
3/8" RWRCM12 3 30 9-1/2" 1.63" .86" .84" .38" 1.63" 1.00" .88"
7/16" RWRCM14 4 40 10-1/4" 1.88" .91" 1.00" .44" 2.00" 1.19" 1.06"
1/2" RWRCM16 4 45 15-1/4" 1.88" .99" 1.00" .44" 2.00" 1.19" 1.06"
9/16" RWRCM18 4 50 16" 2.09" 1.05" 1.25" .50" 2.31" 1.38" 1.25"
5/8" RWRCM20 4 75 16" 2.09" 1.05" 1.25" .50" 2.31" 1.38" 1.25"
3/4" RWRCM24 5 75 22-1/4" 2.38" 1.19" 1.44" .56" 2.56" 1.56" 1.31"
7/8" RWRCM28 5 130 23-1/2" 2.88"   1.75" .63" 3.06" 1.81" 1.63"
1" RWRCM32 6 130 31" 3.00" 1.64" 2.06" .63" 3.44" 2.00" 1.88"
1-1/8" RWRCM36 7 200 39" 3.38"   2.19" .75" 4.00" 2.75" 2.00"
Please click on part number to order.
** Based on Clean, un-lubricated threads. Table above shows minimum torque required to reach maximum holding power of wire rope clip.
WARNING: Malleable wire rope clips are not to be used for overhead lifitng.
