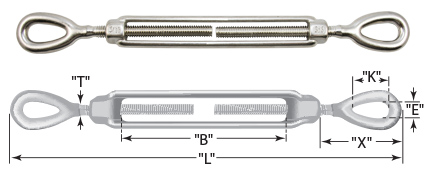

Precision Cast Eye & Eye Stainless Steel Turnbuckles
|
| Precision Cast Eye & Eye Stainless Steel Turnbuckles |
316SS |
Thread Dia.
& Take Up |
Part No. |
WLL
(lbs.)* |
"T"
THREAD |
"L"
LENGTH |
"K"
EYE LENGTH |
"E"
EYE WIDTH |
"X"
LENGTH
CLOSED |
"B"
BODY |
| OPEN |
CLOSED |
| 1/4" x 4" |
33RTBPEE08 |
450 |
1/4"- 20 |
11.68" |
8.18" |
.76" |
.33" |
1.75" |
4.00" |
| 5/16" x 4-1/2" |
33RTBPEE10 |
850 |
5/16"- 18 |
13.87" |
9.62" |
.93" |
.43" |
2.12" |
4.50" |
| 3/8" x 6" |
33RTBPEE12 |
1,200 |
3/8"- 16 |
17.50" |
12.00" |
1.09" |
.50" |
2.37" |
6.00" |
| 1/2" x 6" |
33RTBPEE16 |
1,650 |
1/2"- 13 |
19.12" |
13.62" |
1.41" |
.71" |
3.12" |
6.00" |
| 5/8" x 6" |
33RTBPEE201 |
2,000 |
5/8"- 11 |
19.75" |
14.25" |
1.73" |
.87" |
3.25" |
6.00" |
| 5/8" x 9" |
33RTBPEE202 |
2,000 |
5/8"- 11 |
25.00" |
17.25" |
1.73" |
.87" |
3.25" |
9.00" |
| 5/8" x 12" |
33RTBPEE203 |
2,000 |
5/8"- 11 |
31.00" |
20.25" |
1.73" |
.87" |
3.25" |
12.00" |
| 3/4" x 6" |
33RTBPEE241 |
3,000 |
3/4"- 10 |
23.12" |
17.62" |
2.08" |
.98" |
4.87" |
6.00" |
| 3/4" x 12" |
33RTBPEE243 |
3,000 |
3/4"- 10 |
34.25" |
23.35" |
2.08" |
.98" |
4.87" |
12.00" |
| 7/8" x 6" |
33RTBPEE28 |
3,500 |
7/8"- 9 |
24.37" |
18.87" |
2.37" |
1.20" |
5.20" |
6.00" |
| 1" x 6" |
33RTBPEE32 |
5,500 |
1"- 8 |
27.50" |
22.00" |
3.00" |
1.43" |
6.62" |
6.00" |
| Please click on part number to order. |
U.S. Type, Hex Body Turnbuckle, Meets dimensions of ASTM specification F1145-92 TYPE 1, CLASS H
* Ultimate Load is 4 times the Working Load Limit. |
|
|
|
