Precision Cast Jaw & Eye Stainless Steel Turnbuckles

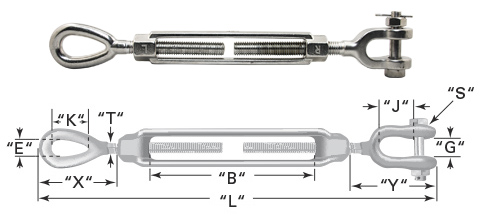

Eye and Eye Schematic

Precision Cast Jaw & Eye Stainless Steel Turnbuckles  316SS
ThreadDia.
& Take Up
Part No. WLL
(lbs.)
*
"T"
THREAD
"G"
JAW
OPENING
"Y"
LENGTH
CLOSED
"J"
JAW
DEPTH
"L"
LENGTH
"K"
EYE
LENGTH
"E"
EYE
WIDTH
"X"
LENGTH
CLOSED
"B"
BODY
"S"
PIN
DIA.
OPEN CLOSED
 1/4" x 4" 33RTBPJE08 450 1/4"- 20 .45" 1.62" .62" 11.50" 8.00" .76" .33" 1.75" 4.00" .23"
5/16" x 4-1/2" 33RTBPJE10 850 5/16"- 18 .46" 2.00" .87" 13.87" 9.62" .93" .43" 2.12" 4.50" .23"
3/8" x 6" 33RTBPJE12 1,200 3/8"- 16 .56" 2.25" .90" 17.00" 11.50" 1.09" .50" 2.37" 6.00" .31"
1/2" x 6" 33RTBPJE16 1,650 1/2"- 13 .65" 2.75" 1.10" 19.00" 13.50" 1.41" .71" 3.12" 6.00" .39"
5/8" x 6" 33RTBPJE201 2,000 5/8"- 11 .81" 3.62" 1.10" 20.25" 14.75" 1.73" .87" 3.25" 6.00" .47"
5/8" x 9" 33RTBPJE202 2,000 5/8"- 11 .81" 3.62" 1.10" 25.50" 17.75" 1.73" .87" 3.25" 9.00" .47"
5/8" x 12" 33RTBPJE203 2,000 5/8"- 11 .81" 3.62" 1.10" 31.50" 20.75" 1.73" .87" 3.25" 12.00" .47"
3/4" x 6" 33RTBPJE241 3,000 3/4"- 10 .96" 4.37" 1.68" 22.25" 16.75" 2.08" .98" 4.87" 6.00" .63"
3/4" x 12" 33RTBPJE243 3,000 3/4"- 10 .96" 4.37" 1.68" 33.50" 22.50" 2.08" .98" 4.87" 12.00" .63"
7/8" x 6" 33RTBPJE28 3,500 7/8"- 9 1.10" 5.00" 1.78" 24.37" 18.87" 2.37" 1.20" 5.20" 6.00" .78"
1" x 6" 33RTBPJE32 5,500 1"- 8 1.09" 5.75" 2.20" 26.50" 21.00" 3.00" 1.43" 6.62" 6.00" .87"
Please click on part number to order.
U.S. Type, Hex Body Turnbuckle, Meets dimensions of ASTM specification F1145-92 TYPE 1, CLASS H

* Ultimate Load is 4 times the Working Load Limit.
