Cable/Wire Grips

gripper
PART NO. SAFETY
LOAD (LBS)
MIN. CABLE MAX. CABLE JAW LENGTH WEIGHT
(LBS)
CABLE TYPE
82TG25 2,200 .118"
(3mm)
.513"
(13mm)
2"
(50mm)
1.3 Bare AL, ACC, ACSR, ACSS, CU Cable, *Guy Strand
82TG45A 5,000 .196"
(5mm)
.87"
(5mm)
3.5"
(90mm)
3.3 CU, Covered, Tree Cables, Guy, EHS, Wire Rope
82TG46A 8,000 .196"
(5mm)
.87"
(5mm)
3.5"
(90mm)
4 CU, Covered, Tree Cables, Guy, EHS, Wire Rope
82TG50A 12,000 .315"
(8mm)
1.1"
(28mm)
5.5"
(140mm)
7.2 CU, Covered, Tree Cables, Guy, EHS, Wire Rope
Please click on part number to order.

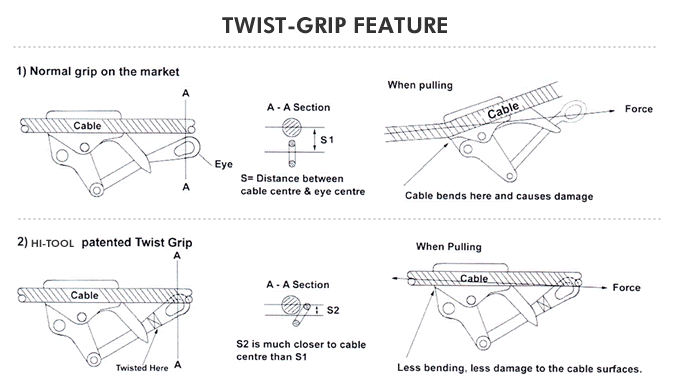

grip schematics
